FEATURES
APPLICATIONS
0.48GHz AlN FLANGED POWER RESISTOR
High power dissipation while working up to GHz range frequencies
Low insertion loss, low temperature coefficient
High reliability and ruggedness
Wide operating temperature range
Available mounting flange: Copper, Gold plated
Microwave and RF high power terminations
Resistive microwave power dividers
Wilkinson power dividers
Power attenuators
Microwave power amplifiers
 770W, 0.48GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFG32032030AN-770W-0G48

PRODUCT DESCRIPTION AND SHORT APPLICATION NOTE
USMRPFG32032030AN-770W-0G48, 770W, 0.48GHz, Aluminum Nitride (AlN) flanged power resistors are designed to be used as microwave and RF power resistors, power terminations, Wilkinson power dividers, power attenuators, microwave power amplifiers, etc. Flanged thin film power resistors and terminations have low temperature coefficients, low noise and increased long term stability compared to their thick film counterpart (see app note 110). In high power applications, temperature coefficient of resistance and long term stability have to be the best available.

TECHNOLOGY DESCRIPTION: SEMICONDUCTOR-THIN FILM MANUFACTURING
All thin film microwave products are manufactured using advanced semiconductors and thin film technologies including ultra-stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. US Microwaves employs proprietary thin film technologies for deposition of a wide range of resistive films with sheet resistance films from 1Ω/sq to 10,000Ω/sq. All US Microwaves products are available in die form and are ideal for high reliability hybrid and multi chip module applications.
All US Microwaves products are manufactured using GOLD CHIP TECHNOLOGY™ a trade mark of Semiconix Corporation.

ELECTRICAL/MECHANICAL CHARACTERISTICS
PARAMETER VALUE UNITS
Resistance range 1 - 100 Ω
Maxim Power 770 W
Maxim Capacitance 6.68 pF
3dB frequency (defined for 50ohm  resistance) 0.48 GHz
Temperature Coefficient -55C to 150C 100 ppm/°C
Tolerances available 1 %
Operating Temperature range -65 to 200 °C
Working voltage (Vw) SQRT(P*R) V
Peak voltage at 25C, 5 sec 1.5x(Vw) V
Insulation resistance at 25 C 1e+13 Ω
ONLY Proper die handling equipment and procedures should be employed. Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

GENERAL DIE INFORMATION
Substrate Thickness [mils] Size [mils] Backside metal
Aluminum Nitride
(AlN)		 30±3 320x320±2 Backside of the die is metallized with standard Ti/Pt/Au compatible with Au-Sn, Au-Ge or silver filled conductive epoxy. Custom metallization is available for special orders.
All US Microwaves products are available in die form. Typical delivery for die products is 2-3 weeks ARO. For Custom designs, delivery is 3-4 weeks ARO. Certain items may be available from stock. Inventory is periodically updated. All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP).

MOUNT FLANGE INFORMATION
Material Copper, Gold plated per MIL-G-45204
Terminals Beryllium Copper with hot solder DIP per RCA part number 1980020-3, and the remainder Gold Plated per MIL-G-45204, Type II, class 00. Available as 99.99% pure silver on special request.
Terminal Strength When tested in accordance with MIL-STD-202 method 211 test condition A, lead shall meet with stand a 12 ounce axial pull (Copper).
Cover 96% Al2O3 alumina ceramic

0.48GHz AlN FLANGED POWER RESISTOR DIE LAYOUT / MECHANICAL SPECIFICATIONS
770W, 0.48GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFG32032030AN-770W-0G48
FLANGE MECHANICAL INFORMATION

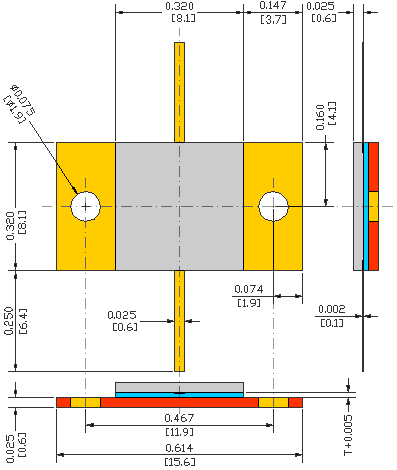

Flange model FL08G
770W, 0.48GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFG32032030AN-770W-0G48 flange mechanical data - standard model FL08G

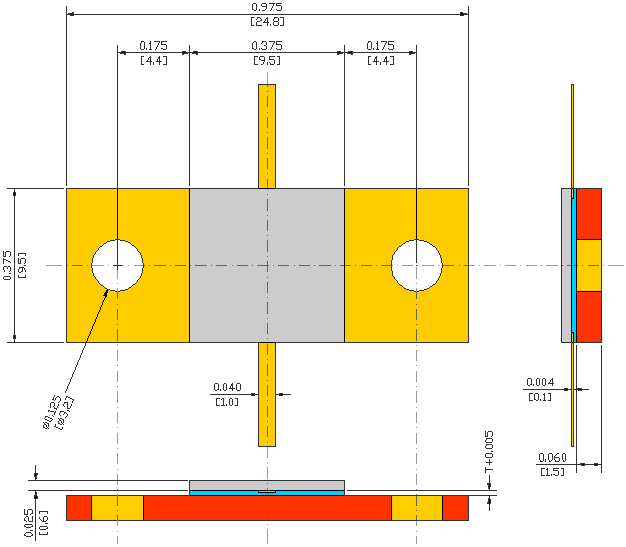

Flange model FL09G
770W, 0.48GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFG32032030AN-770W-0G48 flange mechanical data - model FL09G

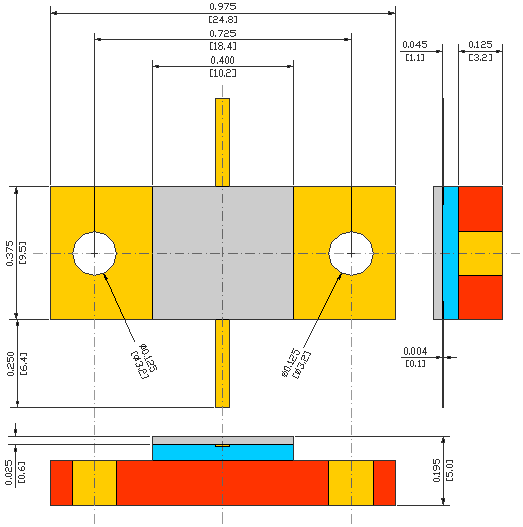

Flange model FL10G
770W, 0.48GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFG32032030AN-770W-0G48 flange mechanical data - model FL10G

FLANGED POWER RESISTORS S PARAMETERS
770W, 0.48GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFG32032030AN-770W-0G48 RETURN LOSS S-PARAMETERS

STANDARD PRODUCTS ORDERING INFORMATION
USM P/N FLANGE R [Ω] MIN. QTY U/P [$]
USMRPFG32032030AN-770W-500-1%-FL08G FL08G 50 100 RFQ
USMRPFG32032030AN-770W-500-1%-FL09G FL09G 50 100 RFQ
USMRPFG32032030AN-770W-500-1%-FL10G FL10G 50 100 RFQ
USMRPFG32032030AN-770W-101-1%-FL08G FL08G 100 100 RFQ
USMRPFG32032030AN-770W-101-1%-FL09G FL09G 100 100 RFQ
USMRPFG32032030AN-770W-101-1%-FL10G FL10G 100 100 RFQ

PART NUMBER BUILDER
R [Ω] R multiplier TOLERANCE FLANGE
Find part # Vmax [V] F@3dB [GHz]

STANDARD EIA-24 VALUES - PRODUCTS ORDERING INFORMATION
USM P/NFLANGER [Ω]U/P[$]USM P/NFLANGER [Ω]U/P[$]
USMRPFG32032030AN-770W-1R0-1%-FL08G1.0RFQUSMRPFG32032030AN-770W-100-1%-FL09G10.0RFQ
USMRPFG32032030AN-770W-1R0-1%-FL09G1.0RFQUSMRPFG32032030AN-770W-100-1%-FL10G10.0RFQ
USMRPFG32032030AN-770W-1R0-1%-FL10G1.0RFQUSMRPFG32032030AN-770W-110-1%-FL08G11.0RFQ
USMRPFG32032030AN-770W-1R1-1%-FL08G1.1RFQUSMRPFG32032030AN-770W-110-1%-FL09G11.0RFQ
USMRPFG32032030AN-770W-1R1-1%-FL09G1.1RFQUSMRPFG32032030AN-770W-110-1%-FL10G11.0RFQ
USMRPFG32032030AN-770W-1R1-1%-FL10G1.1RFQUSMRPFG32032030AN-770W-120-1%-FL08G12.0RFQ
USMRPFG32032030AN-770W-1R2-1%-FL08G1.2RFQUSMRPFG32032030AN-770W-120-1%-FL09G12.0RFQ
USMRPFG32032030AN-770W-1R2-1%-FL09G1.2RFQUSMRPFG32032030AN-770W-120-1%-FL10G12.0RFQ
USMRPFG32032030AN-770W-1R2-1%-FL10G1.2RFQUSMRPFG32032030AN-770W-130-1%-FL08G13.0RFQ
USMRPFG32032030AN-770W-1R3-1%-FL08G1.3RFQUSMRPFG32032030AN-770W-130-1%-FL09G13.0RFQ
USMRPFG32032030AN-770W-1R3-1%-FL09G1.3RFQUSMRPFG32032030AN-770W-130-1%-FL10G13.0RFQ
USMRPFG32032030AN-770W-1R3-1%-FL10G1.3RFQUSMRPFG32032030AN-770W-150-1%-FL08G15.0RFQ
USMRPFG32032030AN-770W-1R5-1%-FL08G1.5RFQUSMRPFG32032030AN-770W-150-1%-FL09G15.0RFQ
USMRPFG32032030AN-770W-1R5-1%-FL09G1.5RFQUSMRPFG32032030AN-770W-150-1%-FL10G15.0RFQ
USMRPFG32032030AN-770W-1R5-1%-FL10G1.5RFQUSMRPFG32032030AN-770W-160-1%-FL08G16.0RFQ
USMRPFG32032030AN-770W-1R6-1%-FL08G1.6RFQUSMRPFG32032030AN-770W-160-1%-FL09G16.0RFQ
USMRPFG32032030AN-770W-1R6-1%-FL09G1.6RFQUSMRPFG32032030AN-770W-160-1%-FL10G16.0RFQ
USMRPFG32032030AN-770W-1R6-1%-FL10G1.6RFQUSMRPFG32032030AN-770W-180-1%-FL08G18.0RFQ
USMRPFG32032030AN-770W-1R8-1%-FL08G1.8RFQUSMRPFG32032030AN-770W-180-1%-FL09G18.0RFQ
USMRPFG32032030AN-770W-1R8-1%-FL09G1.8RFQUSMRPFG32032030AN-770W-180-1%-FL10G18.0RFQ
USMRPFG32032030AN-770W-1R8-1%-FL10G1.8RFQUSMRPFG32032030AN-770W-200-1%-FL08G20.0RFQ
USMRPFG32032030AN-770W-2R0-1%-FL08G2.0RFQUSMRPFG32032030AN-770W-200-1%-FL09G20.0RFQ
USMRPFG32032030AN-770W-2R0-1%-FL09G2.0RFQUSMRPFG32032030AN-770W-200-1%-FL10G20.0RFQ
USMRPFG32032030AN-770W-2R0-1%-FL10G2.0RFQUSMRPFG32032030AN-770W-220-1%-FL08G22.0RFQ
USMRPFG32032030AN-770W-2R2-1%-FL08G2.2RFQUSMRPFG32032030AN-770W-220-1%-FL09G22.0RFQ
USMRPFG32032030AN-770W-2R2-1%-FL09G2.2RFQUSMRPFG32032030AN-770W-220-1%-FL10G22.0RFQ
USMRPFG32032030AN-770W-2R2-1%-FL10G2.2RFQUSMRPFG32032030AN-770W-240-1%-FL08G24.0RFQ
USMRPFG32032030AN-770W-2R4-1%-FL08G2.4RFQUSMRPFG32032030AN-770W-240-1%-FL09G24.0RFQ
USMRPFG32032030AN-770W-2R4-1%-FL09G2.4RFQUSMRPFG32032030AN-770W-240-1%-FL10G24.0RFQ
USMRPFG32032030AN-770W-2R4-1%-FL10G2.4RFQUSMRPFG32032030AN-770W-270-1%-FL08G27.0RFQ
USMRPFG32032030AN-770W-2R7-1%-FL08G2.7RFQUSMRPFG32032030AN-770W-270-1%-FL09G27.0RFQ
USMRPFG32032030AN-770W-2R7-1%-FL09G2.7RFQUSMRPFG32032030AN-770W-270-1%-FL10G27.0RFQ
USMRPFG32032030AN-770W-2R7-1%-FL10G2.7RFQUSMRPFG32032030AN-770W-300-1%-FL08G30.0RFQ
USMRPFG32032030AN-770W-3R0-1%-FL08G3.0RFQUSMRPFG32032030AN-770W-300-1%-FL09G30.0RFQ
USMRPFG32032030AN-770W-3R0-1%-FL09G3.0RFQUSMRPFG32032030AN-770W-300-1%-FL10G30.0RFQ
USMRPFG32032030AN-770W-3R0-1%-FL10G3.0RFQUSMRPFG32032030AN-770W-330-1%-FL08G33.0RFQ
USMRPFG32032030AN-770W-3R3-1%-FL08G3.3RFQUSMRPFG32032030AN-770W-330-1%-FL09G33.0RFQ
USMRPFG32032030AN-770W-3R3-1%-FL09G3.3RFQUSMRPFG32032030AN-770W-330-1%-FL10G33.0RFQ
USMRPFG32032030AN-770W-3R3-1%-FL10G3.3RFQUSMRPFG32032030AN-770W-360-1%-FL08G36.0RFQ
USMRPFG32032030AN-770W-3R6-1%-FL08G3.6RFQUSMRPFG32032030AN-770W-360-1%-FL09G36.0RFQ
USMRPFG32032030AN-770W-3R6-1%-FL09G3.6RFQUSMRPFG32032030AN-770W-360-1%-FL10G36.0RFQ
USMRPFG32032030AN-770W-3R6-1%-FL10G3.6RFQUSMRPFG32032030AN-770W-390-1%-FL08G39.0RFQ
USMRPFG32032030AN-770W-3R9-1%-FL08G3.9RFQUSMRPFG32032030AN-770W-390-1%-FL09G39.0RFQ
USMRPFG32032030AN-770W-3R9-1%-FL09G3.9RFQUSMRPFG32032030AN-770W-390-1%-FL10G39.0RFQ
USMRPFG32032030AN-770W-3R9-1%-FL10G3.9RFQUSMRPFG32032030AN-770W-430-1%-FL08G43.0RFQ
USMRPFG32032030AN-770W-4R3-1%-FL08G4.3RFQUSMRPFG32032030AN-770W-430-1%-FL09G43.0RFQ
USMRPFG32032030AN-770W-4R3-1%-FL09G4.3RFQUSMRPFG32032030AN-770W-430-1%-FL10G43.0RFQ
USMRPFG32032030AN-770W-4R3-1%-FL10G4.3RFQUSMRPFG32032030AN-770W-470-1%-FL08G47.0RFQ
USMRPFG32032030AN-770W-4R7-1%-FL08G4.7RFQUSMRPFG32032030AN-770W-470-1%-FL09G47.0RFQ
USMRPFG32032030AN-770W-4R7-1%-FL09G4.7RFQUSMRPFG32032030AN-770W-470-1%-FL10G47.0RFQ
USMRPFG32032030AN-770W-4R7-1%-FL10G4.7RFQUSMRPFG32032030AN-770W-500-1%-FL08G50.0RFQ
USMRPFG32032030AN-770W-5R0-1%-FL08G5.0RFQUSMRPFG32032030AN-770W-500-1%-FL09G50.0RFQ
USMRPFG32032030AN-770W-5R0-1%-FL09G5.0RFQUSMRPFG32032030AN-770W-500-1%-FL10G50.0RFQ
USMRPFG32032030AN-770W-5R0-1%-FL10G5.0RFQUSMRPFG32032030AN-770W-510-1%-FL08G51.0RFQ
USMRPFG32032030AN-770W-5R1-1%-FL08G5.1RFQUSMRPFG32032030AN-770W-510-1%-FL09G51.0RFQ
USMRPFG32032030AN-770W-5R1-1%-FL09G5.1RFQUSMRPFG32032030AN-770W-510-1%-FL10G51.0RFQ
USMRPFG32032030AN-770W-5R1-1%-FL10G5.1RFQUSMRPFG32032030AN-770W-560-1%-FL08G56.0RFQ
USMRPFG32032030AN-770W-5R6-1%-FL08G5.6RFQUSMRPFG32032030AN-770W-560-1%-FL09G56.0RFQ
USMRPFG32032030AN-770W-5R6-1%-FL09G5.6RFQUSMRPFG32032030AN-770W-560-1%-FL10G56.0RFQ
USMRPFG32032030AN-770W-5R6-1%-FL10G5.6RFQUSMRPFG32032030AN-770W-620-1%-FL08G62.0RFQ
USMRPFG32032030AN-770W-6R2-1%-FL08G6.2RFQUSMRPFG32032030AN-770W-620-1%-FL09G62.0RFQ
USMRPFG32032030AN-770W-6R2-1%-FL09G6.2RFQUSMRPFG32032030AN-770W-620-1%-FL10G62.0RFQ
USMRPFG32032030AN-770W-6R2-1%-FL10G6.2RFQUSMRPFG32032030AN-770W-680-1%-FL08G68.0RFQ
USMRPFG32032030AN-770W-6R8-1%-FL08G6.8RFQUSMRPFG32032030AN-770W-680-1%-FL09G68.0RFQ
USMRPFG32032030AN-770W-6R8-1%-FL09G6.8RFQUSMRPFG32032030AN-770W-680-1%-FL10G68.0RFQ
USMRPFG32032030AN-770W-6R8-1%-FL10G6.8RFQUSMRPFG32032030AN-770W-750-1%-FL08G75.0RFQ
USMRPFG32032030AN-770W-7R5-1%-FL08G7.5RFQUSMRPFG32032030AN-770W-750-1%-FL09G75.0RFQ
USMRPFG32032030AN-770W-7R5-1%-FL09G7.5RFQUSMRPFG32032030AN-770W-750-1%-FL10G75.0RFQ
USMRPFG32032030AN-770W-7R5-1%-FL10G7.5RFQUSMRPFG32032030AN-770W-820-1%-FL08G82.0RFQ
USMRPFG32032030AN-770W-8R2-1%-FL08G8.2RFQUSMRPFG32032030AN-770W-820-1%-FL09G82.0RFQ
USMRPFG32032030AN-770W-8R2-1%-FL09G8.2RFQUSMRPFG32032030AN-770W-820-1%-FL10G82.0RFQ
USMRPFG32032030AN-770W-8R2-1%-FL10G8.2RFQUSMRPFG32032030AN-770W-910-1%-FL08G91.0RFQ
USMRPFG32032030AN-770W-9R1-1%-FL08G9.1RFQUSMRPFG32032030AN-770W-910-1%-FL09G91.0RFQ
USMRPFG32032030AN-770W-9R1-1%-FL09G9.1RFQUSMRPFG32032030AN-770W-910-1%-FL10G91.0RFQ
USMRPFG32032030AN-770W-9R1-1%-FL10G9.1RFQUSMRPFG32032030AN-770W-101-1%-FL08G100.0RFQ
USMRPFG32032030AN-770W-100-1%-FL08G10.0RFQUSMRPFG32032030AN-770W-101-1%-FL09G100.0RFQ
USMRPFG32032030AN-770W-100-1%-FL09G10.0RFQUSMRPFG32032030AN-770W-101-1%-FL10G100.0RFQ
