USMRPFN15015030AN-185W-2G17 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS Microwave power resistors on Aluminum Nitride AlN 185W 2.17 3dB 150 x 150 mils manufactured by US Microwaves USMRPFN15015030AN-185W-2G17 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS Microwave power resistors on Aluminum Nitride AlN 185W 2.17 3dB 150 x 150 mils manufactured by US Microwaves US MICROWAVES 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS Advanced Microwave Components USMRPFN15015030AN-185W-2G17 FEATURES APPLICATIONS 2.17GHz AlN FLANGED POWER RESISTOR High power dissipation while working up to GHz range frequencies Low insertion loss, low temperature coefficient High reliability and ruggedness Wide operating temperature range Available mounting flange: Copper, Nickel plated Microwave and RF high power terminations Resistive microwave power dividers Wilkinson power dividers Power attenuators Microwave power amplifiers 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 PRODUCT DESCRIPTION AND SHORT APPLICATION NOTE USMRPFN15015030AN-185W-2G17, 185W, 2.17GHz, Aluminum Nitride (AlN) flanged power resistors are designed to be used as microwave and RF power resistors, power terminations, Wilkinson power dividers, power attenuators, microwave power amplifiers, etc. Flanged thin film power resistors and terminations have low temperature coefficients, low noise and increased long term stability compared to their thick film counterpart (see app note 110). In high power applications, temperature coefficient of resistance and long term stability have to be the best available. TECHNOLOGY DESCRIPTION: SEMICONDUCTOR-THIN FILM MANUFACTURING All thin film microwave products are manufactured using advanced semiconductors and thin film technologies including ultra-stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. US Microwaves employs proprietary thin film technologies for deposition of a wide range of resistive films with sheet resistance films from 1Ω/sq to 10,000Ω/sq. All US Microwaves products are available in die form and are ideal for high reliability hybrid and multi chip module applications. All US Microwaves products are manufactured using GOLD CHIP TECHNOLOGY™ a trade mark of Semiconix Corporation. ELECTRICAL/MECHANICAL CHARACTERISTICS PARAMETER VALUE UNITS Resistance range 1 - 100 Ω Maxim Power 185 W Maxim Capacitance 1.47 pF 3dB frequency (defined for 50ohm resistance) 2.17 GHz Temperature Coefficient -55C to 150C 100 ppm/°C Tolerances available 1 % Operating Temperature range -65 to 200 °C Working voltage (Vw) SQRT(P*R) V Peak voltage at 25C, 5 sec 1.5x(Vw) V Insulation resistance at 25 C 1e+13 Ω ONLY Proper die handling equipment and procedures should be employed. Stresses beyond listed absolute maximum ratings may cause permanent damage to the device. GENERAL DIE INFORMATION Substrate Thickness [mils] Size [mils] Backside metal Aluminum Nitride (AlN) 30±3 150x150±2 Backside of the die is metallized with standard Ti/Pt/Au compatible with Au-Sn, Au-Ge or silver filled conductive epoxy. Custom metallization is available for special orders. All US Microwaves products are available in die form. Typical delivery for die products is 2-3 weeks ARO. For Custom designs, delivery is 3-4 weeks ARO. Certain items may be available from stock. Inventory is periodically updated. All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP). MOUNT FLANGE INFORMATION Material Copper, Nickel plated per QQ-N-290 Terminals Beryllium Copper with hot solder DIP per RCA part number 1980020-3, and the remainder Gold Plated per MIL-G-45204, Type II, class 00. Available as 99.99% pure silver on special request. Terminal Strength When tested in accordance with MIL-STD-202 method 211 test condition A, lead shall meet with stand a 12 ounce axial pull (Copper). Cover 96% Al2O3 alumina ceramic 2.17GHz AlN FLANGED POWER RESISTOR DIE LAYOUT / MECHANICAL SPECIFICATIONS 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 FLANGE MECHANICAL INFORMATION Flange model FL04N 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 flange mechanical data - standard model FL04N Flange model FL05N 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 flange mechanical data - model FL05N Flange model FL06N 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 flange mechanical data - model FL06N FLANGED POWER RESISTORS S PARAMETERS 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 RETURN LOSS S-PARAMETERS STANDARD PRODUCTS ORDERING INFORMATION USM P/N FLANGE R [Ω] MIN. QTY U/P [$] USMRPFN15015030AN-185W-500-1%-FL04N FL04N 50 100 RFQ USMRPFN15015030AN-185W-500-1%-FL05N FL05N 50 100 RFQ USMRPFN15015030AN-185W-500-1%-FL06N FL06N 50 100 RFQ USMRPFN15015030AN-185W-101-1%-FL04N FL04N 100 100 RFQ USMRPFN15015030AN-185W-101-1%-FL05N FL05N 100 100 RFQ USMRPFN15015030AN-185W-101-1%-FL06N FL06N 100 100 RFQ PART NUMBER BUILDER R [Ω] R multiplier TOLERANCE FLANGE Find part # Vmax [V] F@3dB [GHz] STANDARD EIA-24 VALUES - PRODUCTS ORDERING INFORMATION USM P/N FLANGE R [Ω] U/P[$] USM P/N FLANGE R [Ω] U/P[$] USMRPFN15015030AN-185W-1R0-1% -FL04N 1.0 RFQ USMRPFN15015030AN-185W-100-1% -FL05N 10.0 RFQ USMRPFN15015030AN-185W-1R0-1% -FL05N 1.0 RFQ USMRPFN15015030AN-185W-100-1% -FL06N 10.0 RFQ USMRPFN15015030AN-185W-1R0-1% -FL06N 1.0 RFQ USMRPFN15015030AN-185W-110-1% -FL04N 11.0 RFQ USMRPFN15015030AN-185W-1R1-1% -FL04N 1.1 RFQ USMRPFN15015030AN-185W-110-1% -FL05N 11.0 RFQ USMRPFN15015030AN-185W-1R1-1% -FL05N 1.1 RFQ USMRPFN15015030AN-185W-110-1% -FL06N 11.0 RFQ USMRPFN15015030AN-185W-1R1-1% -FL06N 1.1 RFQ USMRPFN15015030AN-185W-120-1% -FL04N 12.0 RFQ USMRPFN15015030AN-185W-1R2-1% -FL04N 1.2 RFQ USMRPFN15015030AN-185W-120-1% -FL05N 12.0 RFQ USMRPFN15015030AN-185W-1R2-1% -FL05N 1.2 RFQ USMRPFN15015030AN-185W-120-1% -FL06N 12.0 RFQ USMRPFN15015030AN-185W-1R2-1% -FL06N 1.2 RFQ USMRPFN15015030AN-185W-130-1% -FL04N 13.0 RFQ USMRPFN15015030AN-185W-1R3-1% -FL04N 1.3 RFQ USMRPFN15015030AN-185W-130-1% -FL05N 13.0 RFQ USMRPFN15015030AN-185W-1R3-1% -FL05N 1.3 RFQ USMRPFN15015030AN-185W-130-1% -FL06N 13.0 RFQ USMRPFN15015030AN-185W-1R3-1% -FL06N 1.3 RFQ USMRPFN15015030AN-185W-150-1% -FL04N 15.0 RFQ USMRPFN15015030AN-185W-1R5-1% -FL04N 1.5 RFQ USMRPFN15015030AN-185W-150-1% -FL05N 15.0 RFQ USMRPFN15015030AN-185W-1R5-1% -FL05N 1.5 RFQ USMRPFN15015030AN-185W-150-1% -FL06N 15.0 RFQ USMRPFN15015030AN-185W-1R5-1% -FL06N 1.5 RFQ USMRPFN15015030AN-185W-160-1% -FL04N 16.0 RFQ USMRPFN15015030AN-185W-1R6-1% -FL04N 1.6 RFQ USMRPFN15015030AN-185W-160-1% -FL05N 16.0 RFQ USMRPFN15015030AN-185W-1R6-1% -FL05N 1.6 RFQ USMRPFN15015030AN-185W-160-1% -FL06N 16.0 RFQ USMRPFN15015030AN-185W-1R6-1% -FL06N 1.6 RFQ USMRPFN15015030AN-185W-180-1% -FL04N 18.0 RFQ USMRPFN15015030AN-185W-1R8-1% -FL04N 1.8 RFQ USMRPFN15015030AN-185W-180-1% -FL05N 18.0 RFQ USMRPFN15015030AN-185W-1R8-1% -FL05N 1.8 RFQ USMRPFN15015030AN-185W-180-1% -FL06N 18.0 RFQ USMRPFN15015030AN-185W-1R8-1% -FL06N 1.8 RFQ USMRPFN15015030AN-185W-200-1% -FL04N 20.0 RFQ USMRPFN15015030AN-185W-2R0-1% -FL04N 2.0 RFQ USMRPFN15015030AN-185W-200-1% -FL05N 20.0 RFQ USMRPFN15015030AN-185W-2R0-1% -FL05N 2.0 RFQ USMRPFN15015030AN-185W-200-1% -FL06N 20.0 RFQ USMRPFN15015030AN-185W-2R0-1% -FL06N 2.0 RFQ USMRPFN15015030AN-185W-220-1% -FL04N 22.0 RFQ USMRPFN15015030AN-185W-2R2-1% -FL04N 2.2 RFQ USMRPFN15015030AN-185W-220-1% -FL05N 22.0 RFQ USMRPFN15015030AN-185W-2R2-1% -FL05N 2.2 RFQ USMRPFN15015030AN-185W-220-1% -FL06N 22.0 RFQ USMRPFN15015030AN-185W-2R2-1% -FL06N 2.2 RFQ USMRPFN15015030AN-185W-240-1% -FL04N 24.0 RFQ USMRPFN15015030AN-185W-2R4-1% -FL04N 2.4 RFQ USMRPFN15015030AN-185W-240-1% -FL05N 24.0 RFQ USMRPFN15015030AN-185W-2R4-1% -FL05N 2.4 RFQ USMRPFN15015030AN-185W-240-1% -FL06N 24.0 RFQ USMRPFN15015030AN-185W-2R4-1% -FL06N 2.4 RFQ USMRPFN15015030AN-185W-270-1% -FL04N 27.0 RFQ USMRPFN15015030AN-185W-2R7-1% -FL04N 2.7 RFQ USMRPFN15015030AN-185W-270-1% -FL05N 27.0 RFQ USMRPFN15015030AN-185W-2R7-1% -FL05N 2.7 RFQ USMRPFN15015030AN-185W-270-1% -FL06N 27.0 RFQ USMRPFN15015030AN-185W-2R7-1% -FL06N 2.7 RFQ USMRPFN15015030AN-185W-300-1% -FL04N 30.0 RFQ USMRPFN15015030AN-185W-3R0-1% -FL04N 3.0 RFQ USMRPFN15015030AN-185W-300-1% -FL05N 30.0 RFQ USMRPFN15015030AN-185W-3R0-1% -FL05N 3.0 RFQ USMRPFN15015030AN-185W-300-1% -FL06N 30.0 RFQ USMRPFN15015030AN-185W-3R0-1% -FL06N 3.0 RFQ USMRPFN15015030AN-185W-330-1% -FL04N 33.0 RFQ USMRPFN15015030AN-185W-3R3-1% -FL04N 3.3 RFQ USMRPFN15015030AN-185W-330-1% -FL05N 33.0 RFQ USMRPFN15015030AN-185W-3R3-1% -FL05N 3.3 RFQ USMRPFN15015030AN-185W-330-1% -FL06N 33.0 RFQ USMRPFN15015030AN-185W-3R3-1% -FL06N 3.3 RFQ USMRPFN15015030AN-185W-360-1% -FL04N 36.0 RFQ USMRPFN15015030AN-185W-3R6-1% -FL04N 3.6 RFQ USMRPFN15015030AN-185W-360-1% -FL05N 36.0 RFQ USMRPFN15015030AN-185W-3R6-1% -FL05N 3.6 RFQ USMRPFN15015030AN-185W-360-1% -FL06N 36.0 RFQ USMRPFN15015030AN-185W-3R6-1% -FL06N 3.6 RFQ USMRPFN15015030AN-185W-390-1% -FL04N 39.0 RFQ USMRPFN15015030AN-185W-3R9-1% -FL04N 3.9 RFQ USMRPFN15015030AN-185W-390-1% -FL05N 39.0 RFQ USMRPFN15015030AN-185W-3R9-1% -FL05N 3.9 RFQ USMRPFN15015030AN-185W-390-1% -FL06N 39.0 RFQ USMRPFN15015030AN-185W-3R9-1% -FL06N 3.9 RFQ USMRPFN15015030AN-185W-430-1% -FL04N 43.0 RFQ USMRPFN15015030AN-185W-4R3-1% -FL04N 4.3 RFQ USMRPFN15015030AN-185W-430-1% -FL05N 43.0 RFQ USMRPFN15015030AN-185W-4R3-1% -FL05N 4.3 RFQ USMRPFN15015030AN-185W-430-1% -FL06N 43.0 RFQ USMRPFN15015030AN-185W-4R3-1% -FL06N 4.3 RFQ USMRPFN15015030AN-185W-470-1% -FL04N 47.0 RFQ USMRPFN15015030AN-185W-4R7-1% -FL04N 4.7 RFQ USMRPFN15015030AN-185W-470-1% -FL05N 47.0 RFQ USMRPFN15015030AN-185W-4R7-1% -FL05N 4.7 RFQ USMRPFN15015030AN-185W-470-1% -FL06N 47.0 RFQ USMRPFN15015030AN-185W-4R7-1% -FL06N 4.7 RFQ USMRPFN15015030AN-185W-500-1% -FL04N 50.0 RFQ USMRPFN15015030AN-185W-5R0-1% -FL04N 5.0 RFQ USMRPFN15015030AN-185W-500-1% -FL05N 50.0 RFQ USMRPFN15015030AN-185W-5R0-1% -FL05N 5.0 RFQ USMRPFN15015030AN-185W-500-1% -FL06N 50.0 RFQ USMRPFN15015030AN-185W-5R0-1% -FL06N 5.0 RFQ USMRPFN15015030AN-185W-510-1% -FL04N 51.0 RFQ USMRPFN15015030AN-185W-5R1-1% -FL04N 5.1 RFQ USMRPFN15015030AN-185W-510-1% -FL05N 51.0 RFQ USMRPFN15015030AN-185W-5R1-1% -FL05N 5.1 RFQ USMRPFN15015030AN-185W-510-1% -FL06N 51.0 RFQ USMRPFN15015030AN-185W-5R1-1% -FL06N 5.1 RFQ USMRPFN15015030AN-185W-560-1% -FL04N 56.0 RFQ USMRPFN15015030AN-185W-5R6-1% -FL04N 5.6 RFQ USMRPFN15015030AN-185W-560-1% -FL05N 56.0 RFQ USMRPFN15015030AN-185W-5R6-1% -FL05N 5.6 RFQ USMRPFN15015030AN-185W-560-1% -FL06N 56.0 RFQ USMRPFN15015030AN-185W-5R6-1% -FL06N 5.6 RFQ USMRPFN15015030AN-185W-620-1% -FL04N 62.0 RFQ USMRPFN15015030AN-185W-6R2-1% -FL04N 6.2 RFQ USMRPFN15015030AN-185W-620-1% -FL05N 62.0 RFQ USMRPFN15015030AN-185W-6R2-1% -FL05N 6.2 RFQ USMRPFN15015030AN-185W-620-1% -FL06N 62.0 RFQ USMRPFN15015030AN-185W-6R2-1% -FL06N 6.2 RFQ USMRPFN15015030AN-185W-680-1% -FL04N 68.0 RFQ USMRPFN15015030AN-185W-6R8-1% -FL04N 6.8 RFQ USMRPFN15015030AN-185W-680-1% -FL05N 68.0 RFQ USMRPFN15015030AN-185W-6R8-1% -FL05N 6.8 RFQ USMRPFN15015030AN-185W-680-1% -FL06N 68.0 RFQ USMRPFN15015030AN-185W-6R8-1% -FL06N 6.8 RFQ USMRPFN15015030AN-185W-750-1% -FL04N 75.0 RFQ USMRPFN15015030AN-185W-7R5-1% -FL04N 7.5 RFQ USMRPFN15015030AN-185W-750-1% -FL05N 75.0 RFQ USMRPFN15015030AN-185W-7R5-1% -FL05N 7.5 RFQ USMRPFN15015030AN-185W-750-1% -FL06N 75.0 RFQ USMRPFN15015030AN-185W-7R5-1% -FL06N 7.5 RFQ USMRPFN15015030AN-185W-820-1% -FL04N 82.0 RFQ USMRPFN15015030AN-185W-8R2-1% -FL04N 8.2 RFQ USMRPFN15015030AN-185W-820-1% -FL05N 82.0 RFQ USMRPFN15015030AN-185W-8R2-1% -FL05N 8.2 RFQ USMRPFN15015030AN-185W-820-1% -FL06N 82.0 RFQ USMRPFN15015030AN-185W-8R2-1% -FL06N 8.2 RFQ USMRPFN15015030AN-185W-910-1% -FL04N 91.0 RFQ USMRPFN15015030AN-185W-9R1-1% -FL04N 9.1 RFQ USMRPFN15015030AN-185W-910-1% -FL05N 91.0 RFQ USMRPFN15015030AN-185W-9R1-1% -FL05N 9.1 RFQ USMRPFN15015030AN-185W-910-1% -FL06N 91.0 RFQ USMRPFN15015030AN-185W-9R1-1% -FL06N 9.1 RFQ USMRPFN15015030AN-185W-101-1% -FL04N 100.0 RFQ USMRPFN15015030AN-185W-100-1% -FL04N 10.0 RFQ USMRPFN15015030AN-185W-101-1% -FL05N 100.0 RFQ USMRPFN15015030AN-185W-100-1% -FL05N 10.0 RFQ USMRPFN15015030AN-185W-101-1% -FL06N 100.0 RFQ Products sold for space, military or medical applications, element evaluation and/or level K or S qualification are subject to minimum order levels to be established on a case by case basis. For any special applications, die level KGD qualification requirements, different packaging or custom configurations, contact sales department. INSTANT QUOTE US Microwaves P/N Quantity E-mail ORDERING: Order on line at: http://www.usmicrowaves.com/porder.htm. A copy of the order along with an order confirmation receipt is issued instantly for all orders placed on line. On line Orders have to be verified, accepted and acknowledged by US Microwaves sales department in writing before, becoming non cancelable binding contracts. DELIVERY: Typical delivery for die products packaged in waffle packs is 2-4 weeks ARO. For Custom designs, delivery is 3-5 weeks ARO. Certain items may be available from stock with delivery up to 1 week. SHIPPING/PACKAGING: All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP). For larger orders,>10k pc, devices can be shipped on film frame. For smaller quantities, it may vary. For high volume automated assembly, devices may be supplied as 4" wafers 100% tested, inked and diced on expanded film frame (FF). SAMPLES: Samples are available only for customers that have issued firm orders pending qualification of product in a particular application. GUARANTEED SUPPLY! US Microwaves guarantees continuous supply and availability of all standard products provided minimum order quantities are met. U.S. Microwaves has made every effort to have this information as accurate as possible. However, no responsibility is assumed by U.S. Microwaves for its use, nor for any infringements of rights of third parties which may result from its use. U.S. Microwaves reserves the right to revise the content or modify its product line without prior notice. U.S. Microwaves products are not authorized for and should not be used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft, space equipment, submarine, or nuclear facility applications without the specific written consent of U.S. Microwaves. Home Product Tree Tech. Support PDF Request Quote Inventory Place Order Contact sales



US MICROWAVES   185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS
Advanced Microwave Components   USMRPFN15015030AN-185W-2G17



FEATURES
APPLICATIONS
2.17GHz AlN FLANGED POWER RESISTOR
High power dissipation while working up to GHz range frequencies
Low insertion loss, low temperature coefficient
High reliability and ruggedness
Wide operating temperature range
Available mounting flange: Copper, Nickel plated
Microwave and RF high power terminations
Resistive microwave power dividers
Wilkinson power dividers
Power attenuators
Microwave power amplifiers
 185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17

PRODUCT DESCRIPTION AND SHORT APPLICATION NOTE
USMRPFN15015030AN-185W-2G17, 185W, 2.17GHz, Aluminum Nitride (AlN) flanged power resistors are designed to be used as microwave and RF power resistors, power terminations, Wilkinson power dividers, power attenuators, microwave power amplifiers, etc. Flanged thin film power resistors and terminations have low temperature coefficients, low noise and increased long term stability compared to their thick film counterpart (see app note 110). In high power applications, temperature coefficient of resistance and long term stability have to be the best available.

TECHNOLOGY DESCRIPTION: SEMICONDUCTOR-THIN FILM MANUFACTURING
All thin film microwave products are manufactured using advanced semiconductors and thin film technologies including ultra-stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. US Microwaves employs proprietary thin film technologies for deposition of a wide range of resistive films with sheet resistance films from 1Ω/sq to 10,000Ω/sq. All US Microwaves products are available in die form and are ideal for high reliability hybrid and multi chip module applications.
All US Microwaves products are manufactured using GOLD CHIP TECHNOLOGY™ a trade mark of Semiconix Corporation.

ELECTRICAL/MECHANICAL CHARACTERISTICS
PARAMETER VALUE UNITS
Resistance range 1 - 100 Ω
Maxim Power 185 W
Maxim Capacitance 1.47 pF
3dB frequency (defined for 50ohm  resistance) 2.17 GHz
Temperature Coefficient -55C to 150C 100 ppm/°C
Tolerances available 1 %
Operating Temperature range -65 to 200 °C
Working voltage (Vw) SQRT(P*R) V
Peak voltage at 25C, 5 sec 1.5x(Vw) V
Insulation resistance at 25 C 1e+13 Ω
ONLY Proper die handling equipment and procedures should be employed. Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

GENERAL DIE INFORMATION
Substrate Thickness [mils] Size [mils] Backside metal
Aluminum Nitride
(AlN)		 30±3 150x150±2 Backside of the die is metallized with standard Ti/Pt/Au compatible with Au-Sn, Au-Ge or silver filled conductive epoxy. Custom metallization is available for special orders.
All US Microwaves products are available in die form. Typical delivery for die products is 2-3 weeks ARO. For Custom designs, delivery is 3-4 weeks ARO. Certain items may be available from stock. Inventory is periodically updated. All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP).

MOUNT FLANGE INFORMATION
Material Copper, Nickel plated per QQ-N-290
Terminals Beryllium Copper with hot solder DIP per RCA part number 1980020-3, and the remainder Gold Plated per MIL-G-45204, Type II, class 00. Available as 99.99% pure silver on special request.
Terminal Strength When tested in accordance with MIL-STD-202 method 211 test condition A, lead shall meet with stand a 12 ounce axial pull (Copper).
Cover 96% Al2O3 alumina ceramic

2.17GHz AlN FLANGED POWER RESISTOR DIE LAYOUT / MECHANICAL SPECIFICATIONS
185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17
FLANGE MECHANICAL INFORMATION

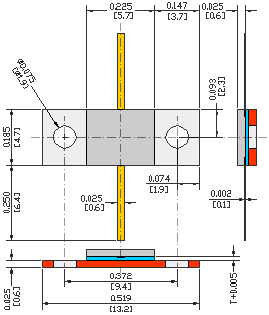

Flange model FL04N
185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 flange mechanical data - standard model FL04N
Flange model FL05N
185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 flange mechanical data - model FL05N
Flange model FL06N
185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 flange mechanical data - model FL06N

FLANGED POWER RESISTORS S PARAMETERS
185W, 2.17GHz, ALUMINUM NITRIDE FLANGED POWER RESISTORS USMRPFN15015030AN-185W-2G17 RETURN LOSS S-PARAMETERS

STANDARD PRODUCTS ORDERING INFORMATION
USM P/N FLANGE R [Ω] MIN. QTY U/P [$]
USMRPFN15015030AN-185W-500-1%-FL04N FL04N 50 100 RFQ
USMRPFN15015030AN-185W-500-1%-FL05N FL05N 50 100 RFQ
USMRPFN15015030AN-185W-500-1%-FL06N FL06N 50 100 RFQ
USMRPFN15015030AN-185W-101-1%-FL04N FL04N 100 100 RFQ
USMRPFN15015030AN-185W-101-1%-FL05N FL05N 100 100 RFQ
USMRPFN15015030AN-185W-101-1%-FL06N FL06N 100 100 RFQ

PART NUMBER BUILDER
R [Ω] R multiplier TOLERANCE FLANGE
Find part # Vmax [V] F@3dB [GHz]

STANDARD EIA-24 VALUES - PRODUCTS ORDERING INFORMATION
USM P/NFLANGER [Ω]U/P[$]USM P/NFLANGER [Ω]U/P[$]
USMRPFN15015030AN-185W-1R0-1%-FL04N1.0RFQUSMRPFN15015030AN-185W-100-1%-FL05N10.0RFQ
USMRPFN15015030AN-185W-1R0-1%-FL05N1.0RFQUSMRPFN15015030AN-185W-100-1%-FL06N10.0RFQ
USMRPFN15015030AN-185W-1R0-1%-FL06N1.0RFQUSMRPFN15015030AN-185W-110-1%-FL04N11.0RFQ
USMRPFN15015030AN-185W-1R1-1%-FL04N1.1RFQUSMRPFN15015030AN-185W-110-1%-FL05N11.0RFQ
USMRPFN15015030AN-185W-1R1-1%-FL05N1.1RFQUSMRPFN15015030AN-185W-110-1%-FL06N11.0RFQ
USMRPFN15015030AN-185W-1R1-1%-FL06N1.1RFQUSMRPFN15015030AN-185W-120-1%-FL04N12.0RFQ
USMRPFN15015030AN-185W-1R2-1%-FL04N1.2RFQUSMRPFN15015030AN-185W-120-1%-FL05N12.0RFQ
USMRPFN15015030AN-185W-1R2-1%-FL05N1.2RFQUSMRPFN15015030AN-185W-120-1%-FL06N12.0RFQ
USMRPFN15015030AN-185W-1R2-1%-FL06N1.2RFQUSMRPFN15015030AN-185W-130-1%-FL04N13.0RFQ
USMRPFN15015030AN-185W-1R3-1%-FL04N1.3RFQUSMRPFN15015030AN-185W-130-1%-FL05N13.0RFQ
USMRPFN15015030AN-185W-1R3-1%-FL05N1.3RFQUSMRPFN15015030AN-185W-130-1%-FL06N13.0RFQ
USMRPFN15015030AN-185W-1R3-1%-FL06N1.3RFQUSMRPFN15015030AN-185W-150-1%-FL04N15.0RFQ
USMRPFN15015030AN-185W-1R5-1%-FL04N1.5RFQUSMRPFN15015030AN-185W-150-1%-FL05N15.0RFQ
USMRPFN15015030AN-185W-1R5-1%-FL05N1.5RFQUSMRPFN15015030AN-185W-150-1%-FL06N15.0RFQ
USMRPFN15015030AN-185W-1R5-1%-FL06N1.5RFQUSMRPFN15015030AN-185W-160-1%-FL04N16.0RFQ
USMRPFN15015030AN-185W-1R6-1%-FL04N1.6RFQUSMRPFN15015030AN-185W-160-1%-FL05N16.0RFQ
USMRPFN15015030AN-185W-1R6-1%-FL05N1.6RFQUSMRPFN15015030AN-185W-160-1%-FL06N16.0RFQ
USMRPFN15015030AN-185W-1R6-1%-FL06N1.6RFQUSMRPFN15015030AN-185W-180-1%-FL04N18.0RFQ
USMRPFN15015030AN-185W-1R8-1%-FL04N1.8RFQUSMRPFN15015030AN-185W-180-1%-FL05N18.0RFQ
USMRPFN15015030AN-185W-1R8-1%-FL05N1.8RFQUSMRPFN15015030AN-185W-180-1%-FL06N18.0RFQ
USMRPFN15015030AN-185W-1R8-1%-FL06N1.8RFQUSMRPFN15015030AN-185W-200-1%-FL04N20.0RFQ
USMRPFN15015030AN-185W-2R0-1%-FL04N2.0RFQUSMRPFN15015030AN-185W-200-1%-FL05N20.0RFQ
USMRPFN15015030AN-185W-2R0-1%-FL05N2.0RFQUSMRPFN15015030AN-185W-200-1%-FL06N20.0RFQ
USMRPFN15015030AN-185W-2R0-1%-FL06N2.0RFQUSMRPFN15015030AN-185W-220-1%-FL04N22.0RFQ
USMRPFN15015030AN-185W-2R2-1%-FL04N2.2RFQUSMRPFN15015030AN-185W-220-1%-FL05N22.0RFQ
USMRPFN15015030AN-185W-2R2-1%-FL05N2.2RFQUSMRPFN15015030AN-185W-220-1%-FL06N22.0RFQ
USMRPFN15015030AN-185W-2R2-1%-FL06N2.2RFQUSMRPFN15015030AN-185W-240-1%-FL04N24.0RFQ
USMRPFN15015030AN-185W-2R4-1%-FL04N2.4RFQUSMRPFN15015030AN-185W-240-1%-FL05N24.0RFQ
USMRPFN15015030AN-185W-2R4-1%-FL05N2.4RFQUSMRPFN15015030AN-185W-240-1%-FL06N24.0RFQ
USMRPFN15015030AN-185W-2R4-1%-FL06N2.4RFQUSMRPFN15015030AN-185W-270-1%-FL04N27.0RFQ
USMRPFN15015030AN-185W-2R7-1%-FL04N2.7RFQUSMRPFN15015030AN-185W-270-1%-FL05N27.0RFQ
USMRPFN15015030AN-185W-2R7-1%-FL05N2.7RFQUSMRPFN15015030AN-185W-270-1%-FL06N27.0RFQ
USMRPFN15015030AN-185W-2R7-1%-FL06N2.7RFQUSMRPFN15015030AN-185W-300-1%-FL04N30.0RFQ
USMRPFN15015030AN-185W-3R0-1%-FL04N3.0RFQUSMRPFN15015030AN-185W-300-1%-FL05N30.0RFQ
USMRPFN15015030AN-185W-3R0-1%-FL05N3.0RFQUSMRPFN15015030AN-185W-300-1%-FL06N30.0RFQ
USMRPFN15015030AN-185W-3R0-1%-FL06N3.0RFQUSMRPFN15015030AN-185W-330-1%-FL04N33.0RFQ
USMRPFN15015030AN-185W-3R3-1%-FL04N3.3RFQUSMRPFN15015030AN-185W-330-1%-FL05N33.0RFQ
USMRPFN15015030AN-185W-3R3-1%-FL05N3.3RFQUSMRPFN15015030AN-185W-330-1%-FL06N33.0RFQ
USMRPFN15015030AN-185W-3R3-1%-FL06N3.3RFQUSMRPFN15015030AN-185W-360-1%-FL04N36.0RFQ
USMRPFN15015030AN-185W-3R6-1%-FL04N3.6RFQUSMRPFN15015030AN-185W-360-1%-FL05N36.0RFQ
USMRPFN15015030AN-185W-3R6-1%-FL05N3.6RFQUSMRPFN15015030AN-185W-360-1%-FL06N36.0RFQ
USMRPFN15015030AN-185W-3R6-1%-FL06N3.6RFQUSMRPFN15015030AN-185W-390-1%-FL04N39.0RFQ
USMRPFN15015030AN-185W-3R9-1%-FL04N3.9RFQUSMRPFN15015030AN-185W-390-1%-FL05N39.0RFQ
USMRPFN15015030AN-185W-3R9-1%-FL05N3.9RFQUSMRPFN15015030AN-185W-390-1%-FL06N39.0RFQ
USMRPFN15015030AN-185W-3R9-1%-FL06N3.9RFQUSMRPFN15015030AN-185W-430-1%-FL04N43.0RFQ
USMRPFN15015030AN-185W-4R3-1%-FL04N4.3RFQUSMRPFN15015030AN-185W-430-1%-FL05N43.0RFQ
USMRPFN15015030AN-185W-4R3-1%-FL05N4.3RFQUSMRPFN15015030AN-185W-430-1%-FL06N43.0RFQ
USMRPFN15015030AN-185W-4R3-1%-FL06N4.3RFQUSMRPFN15015030AN-185W-470-1%-FL04N47.0RFQ
USMRPFN15015030AN-185W-4R7-1%-FL04N4.7RFQUSMRPFN15015030AN-185W-470-1%-FL05N47.0RFQ
USMRPFN15015030AN-185W-4R7-1%-FL05N4.7RFQUSMRPFN15015030AN-185W-470-1%-FL06N47.0RFQ
USMRPFN15015030AN-185W-4R7-1%-FL06N4.7RFQUSMRPFN15015030AN-185W-500-1%-FL04N50.0RFQ
USMRPFN15015030AN-185W-5R0-1%-FL04N5.0RFQUSMRPFN15015030AN-185W-500-1%-FL05N50.0RFQ
USMRPFN15015030AN-185W-5R0-1%-FL05N5.0RFQUSMRPFN15015030AN-185W-500-1%-FL06N50.0RFQ
USMRPFN15015030AN-185W-5R0-1%-FL06N5.0RFQUSMRPFN15015030AN-185W-510-1%-FL04N51.0RFQ
USMRPFN15015030AN-185W-5R1-1%-FL04N5.1RFQUSMRPFN15015030AN-185W-510-1%-FL05N51.0RFQ
USMRPFN15015030AN-185W-5R1-1%-FL05N5.1RFQUSMRPFN15015030AN-185W-510-1%-FL06N51.0RFQ
USMRPFN15015030AN-185W-5R1-1%-FL06N5.1RFQUSMRPFN15015030AN-185W-560-1%-FL04N56.0RFQ
USMRPFN15015030AN-185W-5R6-1%-FL04N5.6RFQUSMRPFN15015030AN-185W-560-1%-FL05N56.0RFQ
USMRPFN15015030AN-185W-5R6-1%-FL05N5.6RFQUSMRPFN15015030AN-185W-560-1%-FL06N56.0RFQ
USMRPFN15015030AN-185W-5R6-1%-FL06N5.6RFQUSMRPFN15015030AN-185W-620-1%-FL04N62.0RFQ
USMRPFN15015030AN-185W-6R2-1%-FL04N6.2RFQUSMRPFN15015030AN-185W-620-1%-FL05N62.0RFQ
USMRPFN15015030AN-185W-6R2-1%-FL05N6.2RFQUSMRPFN15015030AN-185W-620-1%-FL06N62.0RFQ
USMRPFN15015030AN-185W-6R2-1%-FL06N6.2RFQUSMRPFN15015030AN-185W-680-1%-FL04N68.0RFQ
USMRPFN15015030AN-185W-6R8-1%-FL04N6.8RFQUSMRPFN15015030AN-185W-680-1%-FL05N68.0RFQ
USMRPFN15015030AN-185W-6R8-1%-FL05N6.8RFQUSMRPFN15015030AN-185W-680-1%-FL06N68.0RFQ
USMRPFN15015030AN-185W-6R8-1%-FL06N6.8RFQUSMRPFN15015030AN-185W-750-1%-FL04N75.0RFQ
USMRPFN15015030AN-185W-7R5-1%-FL04N7.5RFQUSMRPFN15015030AN-185W-750-1%-FL05N75.0RFQ
USMRPFN15015030AN-185W-7R5-1%-FL05N7.5RFQUSMRPFN15015030AN-185W-750-1%-FL06N75.0RFQ
USMRPFN15015030AN-185W-7R5-1%-FL06N7.5RFQUSMRPFN15015030AN-185W-820-1%-FL04N82.0RFQ
USMRPFN15015030AN-185W-8R2-1%-FL04N8.2RFQUSMRPFN15015030AN-185W-820-1%-FL05N82.0RFQ
USMRPFN15015030AN-185W-8R2-1%-FL05N8.2RFQUSMRPFN15015030AN-185W-820-1%-FL06N82.0RFQ
USMRPFN15015030AN-185W-8R2-1%-FL06N8.2RFQUSMRPFN15015030AN-185W-910-1%-FL04N91.0RFQ
USMRPFN15015030AN-185W-9R1-1%-FL04N9.1RFQUSMRPFN15015030AN-185W-910-1%-FL05N91.0RFQ
USMRPFN15015030AN-185W-9R1-1%-FL05N9.1RFQUSMRPFN15015030AN-185W-910-1%-FL06N91.0RFQ
USMRPFN15015030AN-185W-9R1-1%-FL06N9.1RFQUSMRPFN15015030AN-185W-101-1%-FL04N100.0RFQ
USMRPFN15015030AN-185W-100-1%-FL04N10.0RFQUSMRPFN15015030AN-185W-101-1%-FL05N100.0RFQ
USMRPFN15015030AN-185W-100-1%-FL05N10.0RFQUSMRPFN15015030AN-185W-101-1%-FL06N100.0RFQ

List prices are for standard products, available from stock. List prices for other quantities and tolerances are available on line through Instant Quote. For standard products available from stock, there is a minimum line item order. For custom products please inquire by contacting US Microwaves technical sales. No rights can be derived from pricing information provided on this website. Such information is indicative only, is showed for budgetary use only and subject to change by US MICROWAVES at any time and without notice.
Products sold for space, military or medical applications, element evaluation and/or level K or S qualification are subject to minimum order levels to be established on a case by case basis. For any special applications, die level KGD qualification requirements, different packaging or custom configurations, contact sales department.

INSTANT QUOTE
US Microwaves P/N Quantity E-mail


ORDERING: Order on line at: http://www.usmicrowaves.com/porder.htm. A copy of the order along with an order confirmation receipt is issued instantly for all orders placed on line. On line Orders have to be verified, accepted and acknowledged by US Microwaves sales department in writing before, becoming non cancelable binding contracts.
DELIVERY: Typical delivery for die products packaged in waffle packs is 2-4 weeks ARO. For Custom designs, delivery is 3-5 weeks ARO. Certain items may be available from stock with delivery up to 1 week.
SHIPPING/PACKAGING: All devices for chip and wire applications are 100% tested, visual inspected and shipped in waffle packs (WP). For larger orders,>10k pc, devices can be shipped on film frame. For smaller quantities, it may vary. For high volume automated assembly, devices may be supplied as 4" wafers 100% tested, inked and diced on expanded film frame (FF).
SAMPLES: Samples are available only for customers that have issued firm orders pending qualification of product in a particular application.

GUARANTEED SUPPLY! US Microwaves guarantees continuous supply and availability of all standard products provided minimum order quantities are met.

U.S. Microwaves has made every effort to have this information as accurate as possible. However, no responsibility is assumed by U.S. Microwaves for its use, nor for any infringements of rights of third parties which may result from its use. U.S. Microwaves reserves the right to revise the content or modify its product line without prior notice. U.S. Microwaves products are not authorized for and should not be used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft, space equipment, submarine, or nuclear facility applications without the specific written consent of U.S. Microwaves.
